Crimp Mesh
クリンプ織金網, Lưới đan lượn sóng
|
|
|
|

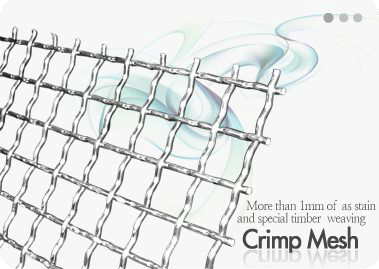

Crimp Mesh
| Usage |
Sorting, Pet cage, Interior decoration, Machine safety net and so on. |
| Materials |
Stainless wire, Pre-stressed Concrete steel wire, , Black & White pig iron and so on. |
|
| |
| Product demonstration |
|
|
|
 Crimp Screen
|
| |
|
|
Weaving with pre-waved wire and suitable for thick wire over than 0.9mm. This crimp type can make relatively large and accurate openings compared to diameter of thick wire.
 Usage : Machine safety net with ventilation, Pet cage, Screen for drainage, Windows,
Grills and so on.
Materials : Stainless wire, Pre-stressed Concrete steel wire, , Black & White pig iron
wire and so on. |
| |
|
Thickness
|
Mesh
|
Opening
|
Width
|
Length
|
|
1.0Ø
|
|
7.02mm
|
1m & 1.2m
|
15m
|
|
1.2Ø
|
|
6.82mm
|
1m & 1.2m
|
15m
|
|
1.2Ø
|
|
8.19mm
|
1m & 1.2m
|
15m
|
|
1.4Ø
|
|
7.99mm
|
1m & 1.2m
|
15m
|
|
1.4Ø
|
|
10.3mm
|
1m & 1.2m
|
15m
|
|
1.6Ø
|
|
10.4mm
|
1m & 1.2m
|
15m
|
|
1.8Ø
|
|
10.2mm
|
1m & 1.2m
|
15m
|
|
2.0Ø
|
|
10.6mm
|
1m & 1.2m
|
15m
|
|
1.6Ø
|
|
13.4mm
|
1m & 1.2m
|
15m
|
|
1.8Ø
|
|
13.2mm
|
1m & 1.2m
|
15m
|
|
2.0Ø
|
|
13.0mm
|
1m & 1.2m
|
15m
|
|
2.0Ø
|
|
18.0mm
|
1m & 1.2m
|
15m
|
|
2.5Ø
|
|
17.5mm
|
1m & 1.2m
|
15m
|
|
2.0Ø
|
|
20.4mm
|
1m & 1.2m
|
15m
|
|
2.5Ø
|
|
19.3mm
|
1m & 1.2m
|
15m
|
|
2.5Ø
|
|
22.5mm
|
1m & 1.2m
|
15m
|
|
2.5Ø
|
|
26.0mm
|
1m & 1.2m
|
15m
|
|
3.0Ø
|
|
28.3mm
|
1m & 1.2m
|
15m
|
|
| |
|
Double Crimp Screen
|
| |
 |
Weaving used in big diameter of wire compared to opening, opening can be increased somewhat, weaving with pre-waved wire same as Crimp screen.
Less unevenness, and same structure with Plain weaving, so called Crimp-way plain weaving.
Usage : Sorting
Materials : steel wire, galvanize wire, a stainless steel wire etc.. steel grade |
| |
|
Thickness
|
Mesh
|
Opening
|
Width
|
Length
|
|
1.2Ø
|
6mesh
|
3.03mm
|
1m & 1.2m
|
15m
|
|
1.4Ø
|
6mesh
|
2.83mm
|
1m
|
15m
|
|
1.2Ø
|
5mesh
|
3.88mm
|
1m & 1.2m
|
15m
|
|
1.4Ø
|
5mesh
|
3.68mm
|
1m
|
15m
|
|
1.6Ø
|
5mesh
|
3.48mm
|
1m
|
15m
|
|
1.2Ø
|
4mesh
|
5.15mm
|
1m & 1.2m
|
15m
|
|
1.4Ø
|
4mesh
|
4.95mm
|
1m & 1.2m
|
15m
|
|
1.6Ø
|
4mesh
|
4.75mm
|
1m & 1.2m
|
15m
|
|
1.8Ø
|
3.5mesh
|
5.45mm
|
1m
|
15m
|
|
1.8Ø
|
3mesh
|
6.66mm
|
1m
|
15m
|
|
| |
|

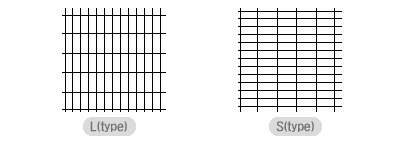

Toncap Screen
|
| |
|
|
The shape of opening is in square or rectangular with flexion at intersections using thin wire lower than 4mmф usually.
Usage : Interior, Sorting, Pet cages
Materials : White pig iron wire, stainless steel wire
Direction of flow
 |
|
| |
|
Thickness
|
Opening
|
Width
|
Length
|
|
1.4Ø
|
12mm
|
1m ~ 2m
|
1~4m
|
|
1.7Ø
|
7.52mm
|
1m ~ 2m
|
1~4m
|
|
1.7Ø
|
9.6mm
|
1m ~ 2m
|
1~4m
|
|
2Ø
|
20mm
|
1m ~ 2m
|
1~4m
|
|
4Ø
|
15mm
|
1m ~ 2m
|
1~4m
|
|
4Ø
|
18.2mm
|
1m ~ 2m
|
1~4m
|
|
4Ø
|
20.5mm
|
1m ~ 2m
|
1~4m
|
|
| |
|

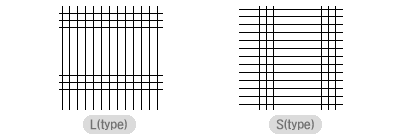

Tylot Screen
|
| |
 |
Let particles get into openings easily through secondary vibration like springs due to long length of wire by weaving the opening wide in one direction.
Usage : Interior, Sorting
Materials : Stainless steel wire
Direction of flow
 |
|
| |
|
Flat_top Screen
|
| |
 |
Its Shape is similar with Toncap, and weaving with over than 4mm diameter of wires. Surface is plain with high efficiency for sorting,
Usage : Sorting
Materials : Stainless steel wire, Pre-stressed Concrete steel wire |
| |
|

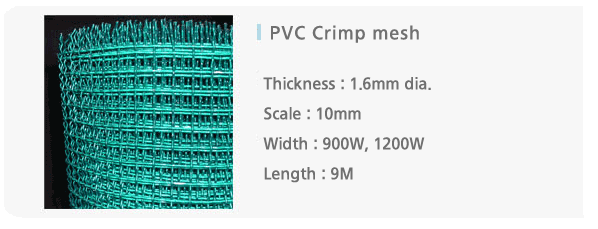

PVC Crimp mesh
|
| |
.gif) |
| |
|
Vibrating Screen
|
| |
 |
Mainly used to sort coal and ore to prevent trapping in the openings of the screen through forming of space by wires. High efficiency of sorting and reduce the breakage of screen due to the trapping.
Usage : Sorting
Materials : Stainless steel wire
|
|
|
|
|
| |
|
|
